Push-To-Talk Handsets

MCPTT-H1 Series

MCPTT-H1 Series combines Push-to-Talk over Cellular and RF backup to maintain uninterrupted communication beyond cellular coverage.

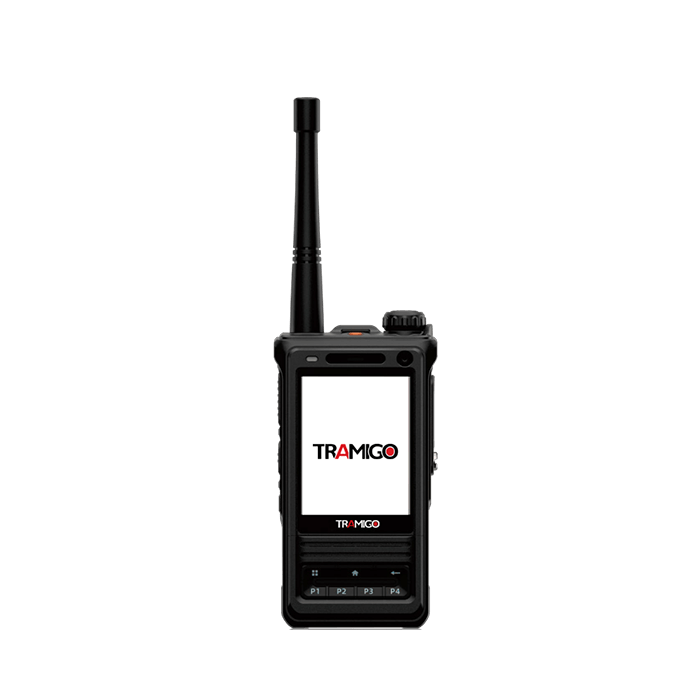

Tramigo MCPTT H1 series mission critical push to talk handset
Tramigo MCPTT H1 series mission critical push to talk handset

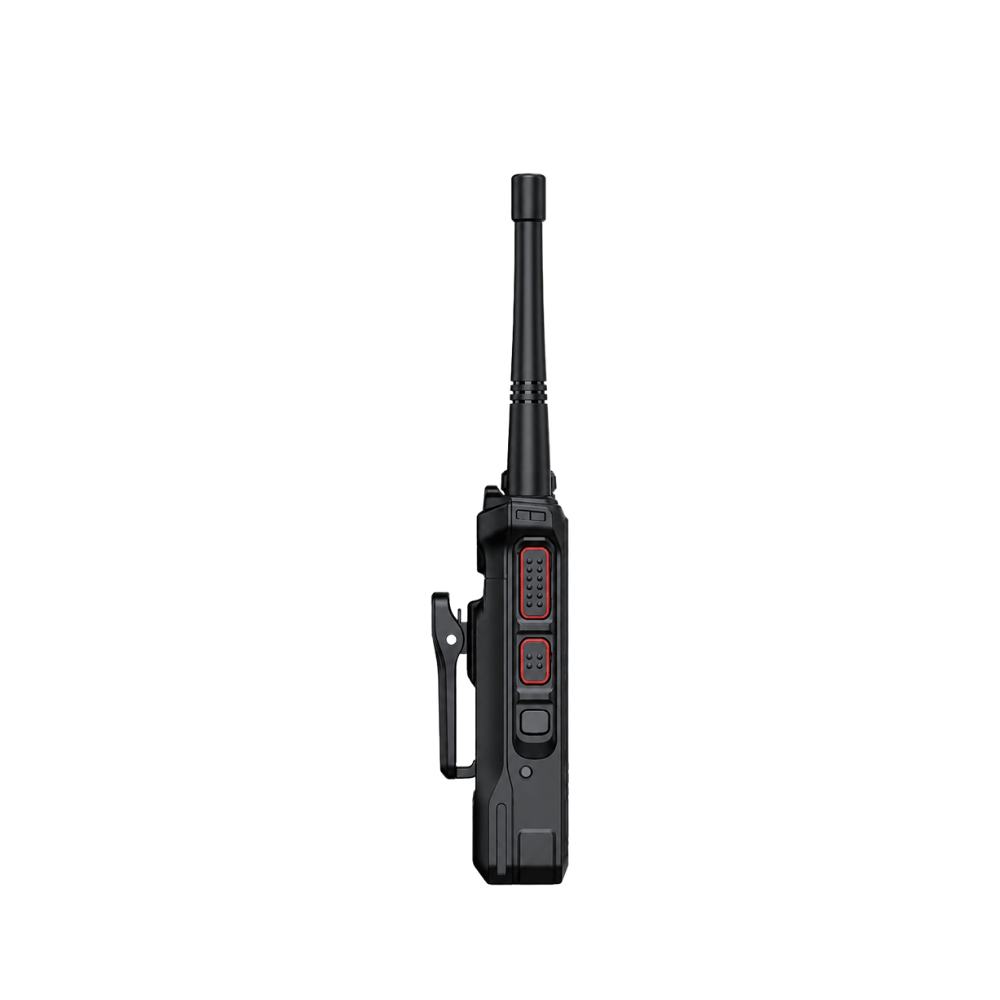

MCPTT H1 series_side 2

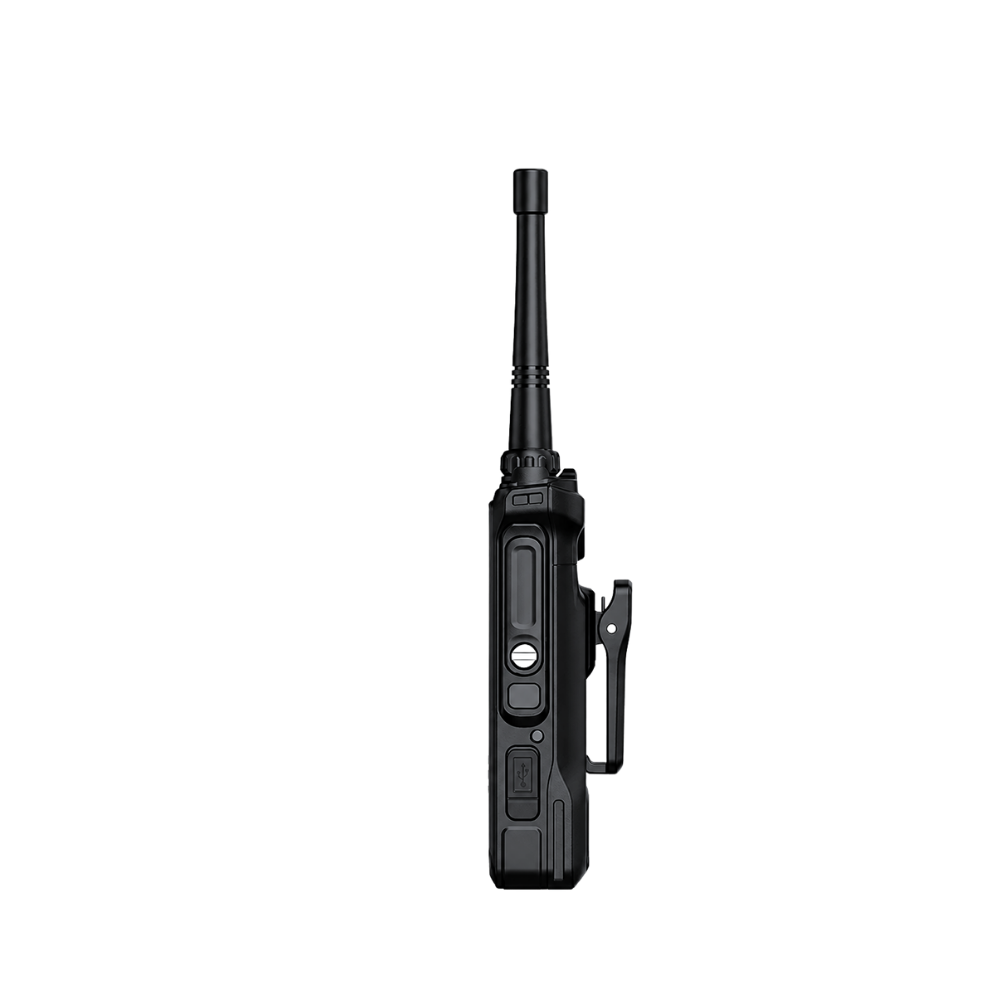

MCPTT H1 series_side

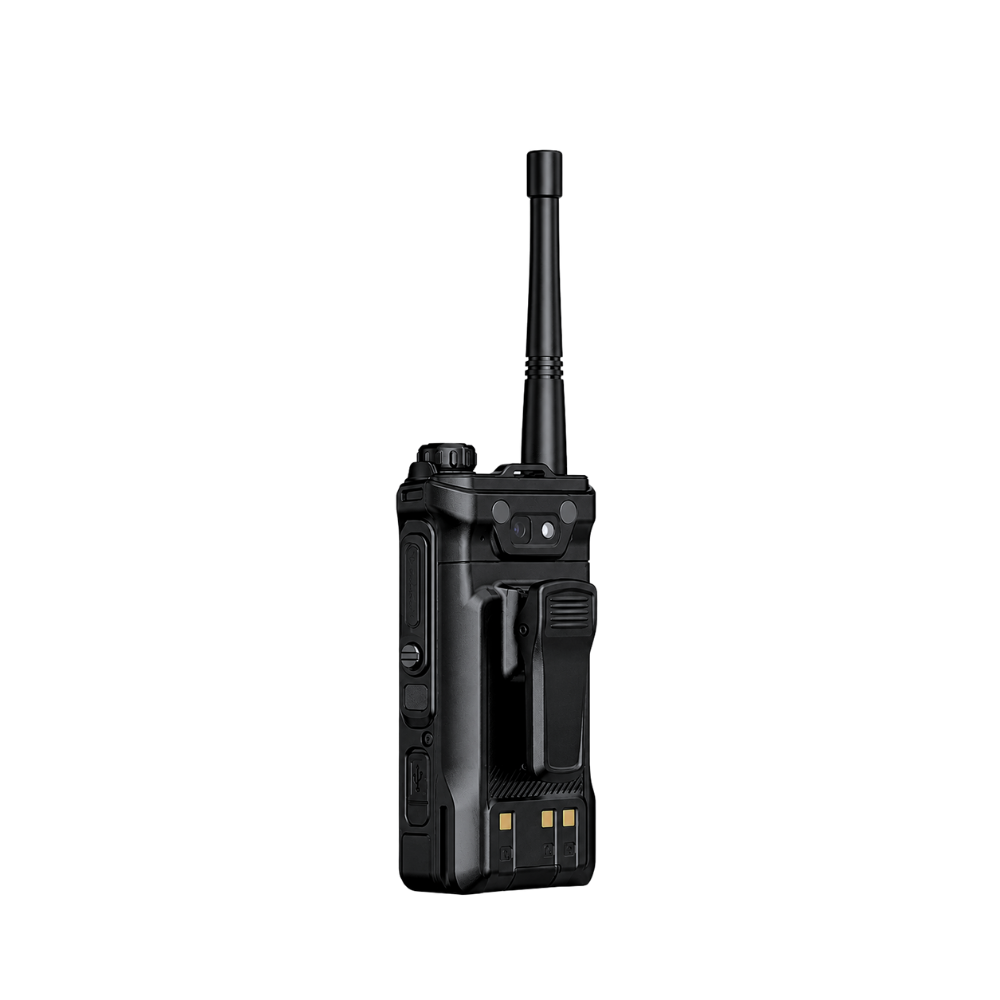

MCPTT H1 series -back
Download PDF

Key Features

Hybrid PoC and RF communication
AES-256 encrypted communication
Works over 4G, 3G, and 2G
Real-time GPS location tracking
Dedicated emergency SOS button
Full-duplex and group communication
IP68 dust and water protection
Multi-network connectivity

Operating System

Android 8.1

Cellular Network Support

GSM: B2/3/5/8
CDMA: BC0
WCDMA: B1/2/5/8
TDS: B34/39
FDD-LTE: B1/2/3/5/7/8/18/19/20/25/26/28a/28b
TDD-LTE: B34/38/39/40/41

Narrowband Communication

MCPTT-H1V: 136–174 MHz
MCPTT-H1Ui: 350–390 MHz
MCPTT-H1Uii: 400–480 MHz

Wireless Connectivity & GNSS

2.4GHz WLAN (802.11 b/g/n)
Multiple Bluetooth device support
GPS / GLONASS / BeiDou

Display & Camera

2.8″ touchscreen display
480 × 640 resolution
Front camera: 5 MP
Rear camera: 8 MP

Power System

Operating voltage: 3.7 VDC

Physical Specifications

Dimensions: 129 × 71 × 30 mm
Weight: 285 g (including battery and antenna)

RF & Narrowband Performance

RF output power ≤3W
12.5kHz / 25kHz channel spacing
4FSK and FM modulation support
AMBE++ digital vocoder
Sensitivity: 0.25uV (5% BER)
Adjacent channel selectivity: 60dB
Spurious suppression: 70dB

Audio Performance

Rated audio output: 0.5W
Audio distortion: 3%
Hum and noise: -40dB

Environmental & Durability

Operating temperature: -20°C to +60°C
Storage temperature: -30°C to +70°C
MIL-STD-810C/D/E/F certified
IP68 protection rating
IEC 61000-4-2 ESD protection
